Industrial Manriding Winch 20m/min With 10mm Diameter Steel Rope

Brand Name : Juling

Model Number : As Specified in the data

Place of Origin : China

MOQ : 1

Price : negotiable

Payment Terms : T/T

Delivery Time : Stock

Packaging Details : Wooden Box

Certification : API,ISO

Certifications : CE, ISO

Usage : Lifting in Oilfield

Safety Features : Emergency Stop Button, Overload Protection

Color : Yellow Orange or other Colors

Material : Steel

Warranty : 12 Months

Contact Now

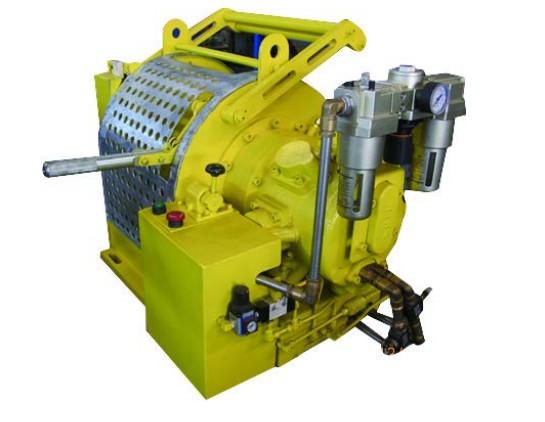

Man Rider Winch-Model ZJQH-1.5×30B

INTRODUCTION

Taian Juling Drilling Equipment Co., Ltd. is a high-tech enterprise specializing in the research and development and manufacture of pneumatic machinery. It has more than 30 years of experience in pneumatic machinery research and development and manufacturing. It is a professional manufacturer of pneumatic winches.Juling Manrider air winch is a kind of pneumatic motor as the power, through the built-in planetary deceleration mechanism to drive the drum, to achieve lifting or traction device.


MAIN PARAMETERS

The ZJQH-1.5*30B manrider winch is a robust and efficient lifting device designed for safe personnel transportation. With a rated lifting force of 1.5 kN and a lifting speed range of 0–30 m/min, it ensures smooth and controlled operation. The winch is equipped with a 10 mm diameter steel rope, offering a wire capacity of 150 meters. Its compact design, measuring 850×810×910 mm, makes it suitable for various workspaces. Powered by a pneumatic motor with a rated power of 1.8 kW, it operates efficiently within a compressed air pressure range of 0.25–0.8 MPa and consumes a maximum of 5 m³/min of air. Safety is enhanced by its built-in entire disc cab and band hand brake system. Weighing 350 kg, this winch combines durability, reliability, and ease of use, making it ideal for demanding industrial applications.

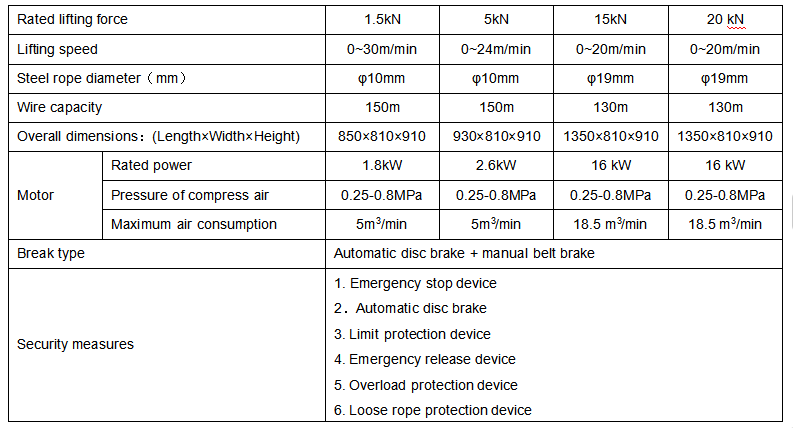

Industrial Manriding Winch 20m/min With 10mm Diameter Steel Rope

Rated lifting force 1.5kN 5kN 15kN 20 kN

Lifting speed 0~30m/min 0~24m/min 0~20m/min 0~20m/min

Steel rope diameter(mm) φ10mm φ10mm φ19mm φ19mm

Wire capacity 150m 150m 130m 130m

Rated power 1.8kW 2.6kW 16 kW 16 kW

Maximum air consumption 5m3/min 5m3/min 18.5 m3/min 18.5 m3/min

Break type Automatic disc brake + manual belt brake
