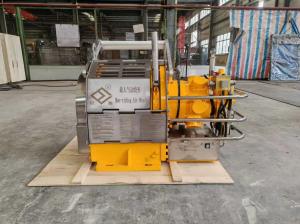

ZJQH-10×20B0 Manned Pneumatic Winch 10KN for Personnel Lifting

  • 1
  • 2
  • 3

Brand Name : Juling

Model Number : As Specified in the data

Certification : API,ISO

Place of Origin : China

MOQ : 1

Price : negotiable

Payment Terms : T/T

Delivery Time : Stock

Packaging Details : Wooden Box

Application : Oilfield

Usage : Lifting in Oilfield

Max. Lifting Capacity : 500kg

Warranty : 12 months

Name : ZJQH-10×20B0 Manned Pneumatic Winch 10KN for Personnel Lifting

Rated lifting force : 10KN

Certifications : CE, ISO

Safety Features : Emergency Stop Button, Overload Protection

Color : Yellow Orange or other Colors

Material : Steel

Contact Now

ZJQH-10×20B0 Manned Pneumatic Winch Personnel Lifting

INTRODUCTION

Manned winch ZJQH-10×20B0 is a kind of equipment specially used for safe lifting and lowering of personnel, which is widely used in high-altitude work, offshore platform, oilfield drilling, mine rescue and construction installation. Its core role is to provide vertical transportation solutions to ensure safe and efficient movement of workers in dangerous or hard-to-reach environments.

In oil field drilling and offshore platform operations, the manned winch is often used to transport personnel from the surface or ship to the drilling platform or high work area, especially in emergency situations, it can also be used as an escape device. They are often designed with multiple safety protection mechanisms such as fall protection, overload protection and emergency braking systems to ensure safety and reliability during the transport of personnel.

In addition, the manned winch also has a high carrying capacity and stability, and can adapt to complex working environments, such as high temperature, flammable and explosive or bad weather conditions. Its explosion-proof design and the use of corrosion-resistant materials further enhance its applicability in hazardous environments.

In short, the manned winch not only improves the working efficiency, but also significantly reduces the risk of personnel working at high altitudes or dangerous areas, and is one of the important equipment to ensure safe production.

MAIN PARAMETERS

Rated lifting force 10KN;
Lifting speed 0~20m/min;
Steel rope diameter(mm) φ12mm
Wire capacity (D=10mm) 120m
Overall dimensions(Length *Width *Height) mm 950×800×700
Pneumatic Motor Rated power(kW) 2.6kW
Pressure of compress air(MPa) 0.25-0.8MPa
ax. air consumption ≤5m3/min
Break type Built-in entire disc CAAB + Band hand break
weight(kg) 500
Security measures Ergency stop device
Barely able to brake.
Limit Switches;
Mergency Lowering
Over load protection device
Slack Line Detector
