Remote Control Siemens Electric Motor Winch Model DJFY-50*19/10 Series 0.5t-65t

Brand Name : Juling

Model Number : As Specified in the data

Place of Origin : China

MOQ : 1

Price : negotiable

Payment Terms : T/T

Delivery Time : Stock

Packaging Details : Wooden Box

Certification : API,ISO

Control Type : Remote Control

Clutch : sliding ring gear

Electrical Band : Siemens

Key Words : Electric Piling Winch

Capacity : 0.5t-65t

Machine Weight : 28kg

Rope Length : Reach to 3500m

Rope Dia : 9

Packing Size : 570x190x345mm

Rope Capacity : 170

Guarantee Time : 12 months

Dimensions : 21.3 x 6.3 x 8.6 inches

Keyword : Light Duty winch

Gear Reduction Ratio : 187.2:1

Speed : 8m/min

Certifications : CE, ISO

Usage : Lifting in Oilfield

Safety Features : Emergency Stop Button, Overload Protection

Color : Yellow Orange or other Colors

Material : Steel

Warranty : 12 Months

Contact Now

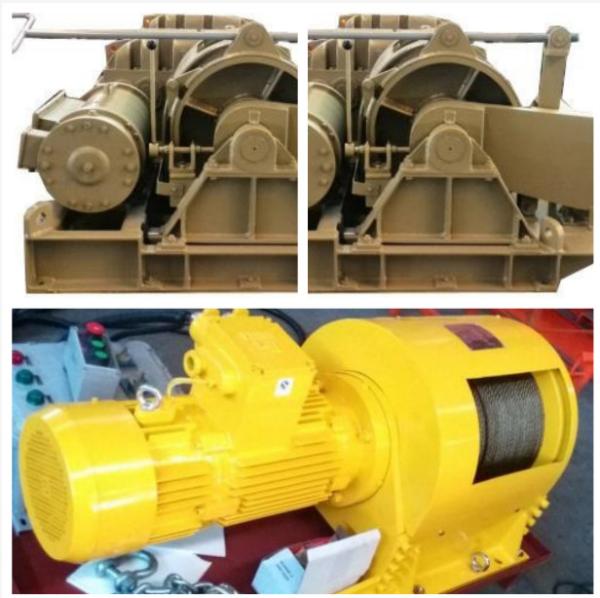

Electric Winch Model DJFY-50*19/10 Series Powered By Motor

PRODUCTION

DJFY type electric winch is a winch device which is powered by motor and drives reel through gear reduction mechanism to achieve heavy traction and lifting. It has the advantages of compact structure, convenient operation, safe and reliable work, simple maintenance, smooth operation and so on.

The DJFY electric winch can be operated remotely.


NUMBERING METHOD

Remote Control Siemens Electric Motor Winch Model DJFY-50*19/10 Series 0.5t-65t


① DJFY:DJ- electric winch, F- explosion-proof, Y- remote control.

○2 Max lifting force in first layer: :kN.

③ Max speed : m/min.

TECHNICAL PARAMETER

Item

Specification parameter

Model

DJFY-5*16

DJFY-20*8

DJFY-30*20

DJFY-50*19/10

DJFY-60*2

Ambient temperature

-25℃∽40℃

Specification of lubricating oil

GL-5,80w-90. Freezing point -60

Max Force lb

1125

4500

6750

11250

13500

Max speed ft/s

0.88

0.44

1.1

1.1/0.55

0.11

Rated power H.P

2

5.4

14.7

24.8/14.7

5.4

Rope capacity ft

130

260

390

390

165

Wire rope diameter in

0.24

0.55

0.63

0.75

0.787

Overall dimension:

L*W*H(in)

27.6*11*13

49*23.5*24

46*30*24

57.5*32*26.6

53*32*26
