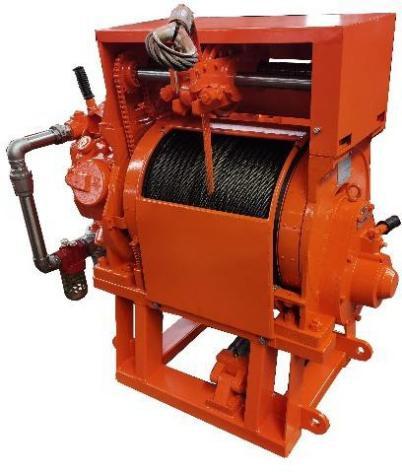

Automatic Rope Winch With Model XJFH-5/35KZP Compact Structure Small Size Light Weight
PRODUCTION
XJFH-5/35KZP type automatic rope winch is a winch with automatic rope winch mechanism newly developed by our company, which solves the worldwide problem that automatic rope winch is easy to mess up rope when working. Automatic rope winch can be used as an explosion-proof traction, lifting power device, especially suitable for oil fields, geological drilling, mining and flammable, explosive gas places. Use areas, available on deck surfaces and catwalks. Operation mode: manual, portable remote control.
FEATURES
1.Compact structure, small size, light weight; 2.Stepless speed regulation
2. Easy to operate;
3. Safe and reliable work, especially suitable for flammable, explosive gas places; 5.Large starting torque, can be started with load;
6. Maintenance is simple, convenient, smooth operation;
7. The wire rope can be arranged on the drum in an orderly manner；
PARAMETERS
|
Item
|
Specification
|
|
Model
|
XJFH-5/35KZP
|
|
Max. lifting force
|
50kN
|
|
Max. lifting speed
|
35m/min
|
|
Rated power
|
16kw
|
|
Air intake pressure
|
0.8Mpa
|
|
Rated air consumption
|
18.3m3/min
|
|
Wire capacity
|
120M
|
|
Diameter of wire
|
20mm(15/16 in)
|
|
Net weight
|
800Kg
|
TAJL attaches great importance to the construction of quality system and scientific and technological innovation, and has passed ISO9001: 2008 Quality management system certification, API certification from the American Petroleum Institute, MA(KA) certification for mining products, product type approval from China Classification Society (CCS), ABS certification, DNV certification.
The company always adheres to the tenet of "scientific and technological innovation, quality first, customer satisfaction, and continuous improvement", constantly improves and improves product performance, further improves product quality, and researches and develops new products with more applicability, excellent functions, and high quality. Provide users with Better products and services.
